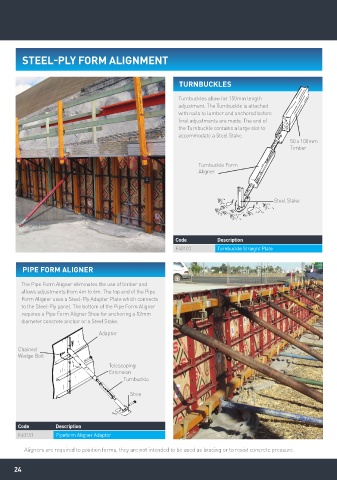

STEEL-PLY FORM ALIGNMENT

TURNBUCKLES

Turnbuckles allow for 150mm length
adjustment. The Turnbuckle is attached
with nails to lumber and anchored before
final adjustments are made. The end of
the Turnbuckle contains a large slot to
accommodate a Steel Stake.
50 x 100mm
Timber

Turnbuckle Form
Aligner

Steel Stake

Code Description
F40103 Turnbuckle Straight Plate

PIPE FORM ALIGNER

The Pipe Form Aligner eliminates the use of timber and
allows adjustments from 4m to 6m. The top end of the Pipe
Form Aligner uses a Steel-Ply Adapter Plate which connects
to the Steel-Ply panel. The bottom of the Pipe Form Aligner
requires a Pipe Form Aligner Shoe for anchoring a 12mm
diameter concrete anchor or a Steel Stake.

Adaptor

Chained
Wedge Bolt
Telescoping
Extension
Turnbuckle

Shoe

Code Description
F40151 Pipeform Aligner Adaptor

Aligners are required to position forms, they are not intended to be used as bracing or to resist concrete pressure.
