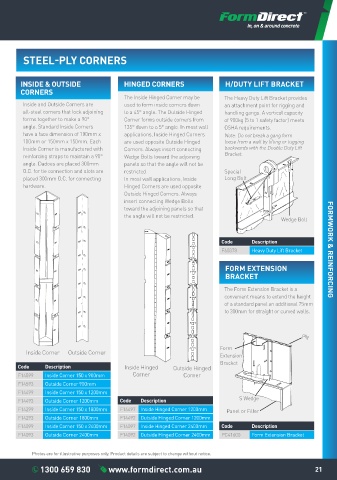

STEEL-PLY CORNERS

INSIDE & OUTSIDE HINGED CORNERS H/DUTY LIFT BRACKET
CORNERS
The Inside Hinged Corner may be The Heavy Duty Lift Bracket provides
Inside and Outside Corners are used to form inside corners down an attachment point for rigging and
all-steel corners that lock adjoining to a 45° angle. The Outside Hinged handling gangs. A vertical capacity
forms together to make a 90° Corner forms outside corners from of 900kg (5 to 1 safety factor) meets
angle. Standard Inside Corners 135° down to a 5° angle. In most wall OSHA requirements.
have a face dimension of 100mm x applications, Inside Hinged Corners Note: Do not break a gang form
100mm or 150mm x 150mm. Each are used opposite Outside Hinged loose from a wall by lifting or tugging
Inside Corner is manufactured with Corners. Always insert connecting backwards with the Double Duty Lift
reinforcing straps to maintain a 90° Wedge Bolts toward the adjoining Bracket.
angle. Dadoes are placed 300mm panels so that the angle will not be
O.C. for tie connection and slots are restricted. Special
placed 300mm O.C. for connecting In most wall applications, Inside Long Bolt
hardware. Hinged Corners are used opposite
Outside Hinged Corners. Always
insert connecting Wedge Bolts
toward the adjoining panels so that
the angle will not be restricted.
Wedge Bolt

Code Description
F60378 Heavy Duty Lift Bracket FORMWORK & REINFORCING

FORM EXTENSION
BRACKET

The Form Extension Bracket is a
convenient means to extend the height
of a standard panel an additional 75mm
to 300mm for straight or curved walls.

Ply
Form
Inside Corner Outside Corner
Extension
Bracket
Code Description Inside Hinged Outside Hinged
F14599 Inside Corner 150 x 900mm Corner Corner
F14593 Outside Corner 900mm
F14499 Inside Corner 150 x 1200mm
F14493 Outside Corner 1200mm Code Description S Wedge
F14299 Inside Corner 150 x 1800mm F14497 Inside Hinged Corner 1200mm Panel or Filler
F14293 Outside Corner 1800mm F14492 Outside Hinged Corner 1200mm
F14099 Inside Corner 150 x 2400mm F14097 Inside Hinged Corner 2400mm Code Description
F14093 Outside Corner 2400mm F14092 Outside Hinged Corner 2400mm PC41600 Form Extension Bracket

Photos are for illustrative purposes only. Product details are subject to change without notice.
