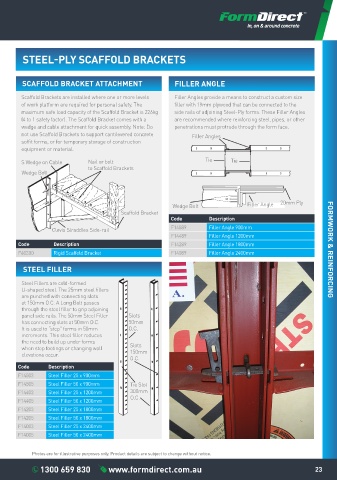

STEEL-PLY SCAFFOLD BRACKETS
SCAFFOLD BRACKET ATTACHMENT FILLER ANGLE
Scaffold Brackets are installed where one or more levels Filler Angles provide a means to construct a custom size
of work platform are required for personal safety. The filler with 19mm plywood that can be connected to the
maximum safe load capacity of the Scaffold Bracket is 226kg side rails of adjoining Steel-Ply forms. These Filler Angles
(4 to 1 safety factor). The Scaffold Bracket comes with a are recommended where reinforcing steel, pipes, or other
wedge and cable attachment for quick assembly. Note: Do penetrations must protrude through the form face.
not use Scaffold Brackets to support cantilevered concrete Filler Angles
soffit forms, or for temporary storage of construction
equipment or material.
S Wedge on Cable Nail or bolt Tie Tie
to Scaffold Brackets
Wedge Bolt
Wedge Bolt Filler Angle 20mm Ply
Scaffold Bracket
Code Description
Clevis Straddles Side-rail F14589 Filler Angle 900mm
F14489 Filler Angle 1200mm
Code Description F14289 Filler Angle 1800mm
F40300 Rigid Scaffold Bracket F14089 Filler Angle 2400mm FORMWORK & REINFORCING
STEEL FILLER
Steel Fillers are cold-formed
U-shaped steel. The 25mm steel fillers
are punched with connecting slots
at 150mm O.C. A Long Bolt passes
through the steel filler to grip adjoining
panel side rails. The 50mm Steel Filler Slots
has connecting slots at 50mm O.C. 50mm
It is used to “step” forms in 50mm O.C.
increments. This steel filler reduces
the need to build up under forms
when step footings or changing wall Slots
elevations occur. 150mm
O.C.
Code Description
F14503 Steel Filler 25 x 900mm
F14505 Steel Filler 50 x 900mm Tie Slot
F14403 Steel Filler 25 x 1200mm 300mm
F14405 Steel Filler 50 x 1200mm O.C.
F14203 Steel Filler 25 x 1800mm
F14205 Steel Filler 50 x 1800mm
F14003 Steel Filler 25 x 2400mm
F14005 Steel Filler 50 x 2400mm
Photos are for illustrative purposes only. Product details are subject to change without notice.
