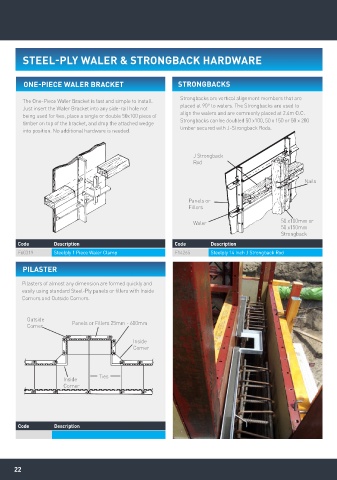

STEEL-PLY WALER & STRONGBACK HARDWARE

ONE-PIECE WALER BRACKET STRONGBACKS

The One-Piece Waler Bracket is fast and simple to install. Strongbacks are vertical alignment members that are
Just insert the Waler Bracket into any side-rail hole not placed at 90° to walers. The Strongbacks are used to
being used for ties, place a single or double 50x100 piece of align the walers and are commonly placed at 2.4m O.C.
timber on top of the bracket, and drop the attached wedge Strongbacks can be doubled 50 x100, 50 x 150 or 50 x 200
into position. No additional hardware is needed. timber secured with J-Strongback Rods.

J Strongback
Rod

Nails

Panels or
Fillers

Waler 50 x100mm or
50 x150mm
Strongback
Code Description Code Description
F60319 Steelply 1 Piece Waler Clamp F14265 Steelply 14 Inch J Strongback Rod

PILASTER

Pilasters of almost any dimension are formed quickly and
easily using standard Steel-Ply panels or fillers with Inside
Corners and Outside Corners.

Outside
Corner Panels or Fillers 25mm - 600mm

Inside
Corner

Ties
Inside
Corner

Code Description
