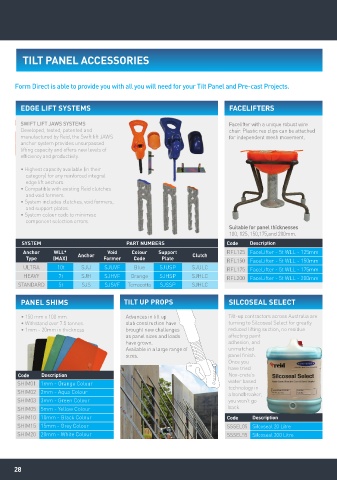

Page 28 - Concrete Handbook 2017

TILT PANEL ACCESSORIES

Form Direct is able to provide you with all you will need for your Tilt Panel and Pre-cast Projects.

EDGE LIFT SYSTEMS FACELIFTERS

SWIFT LIFT JAWS SYSTEMS Facelifter with a unique robust wire
Developed, tested, patented and chair. Plastic reo clips can be attached
manufactured by Reid, the Swift lift JAWS for independent mesh movement.
anchor system provides unsurpassed
lifting capacity and offers new levels of
efficiency and productivity.

• Highest capacity available (in their
category) for any reinforced integral
edge lift anchors.
• Compatible with existing Reid clutches
and void formers.
• System includes clutches, void formers,
and support plates.
• System colour code to minimise
component selection errors.
Suitable for panel thicknesses
100, 125, 150,175,and 200mm.
SYSTEM PART NUMBERS Code Description
Anchor WLL* Anchor Void Colour Support Clutch RFL125 FaceLifter - 5t WLL - 125mm
Type (MAX) Former Code Plate RFL150 FaceLifter - 5t WLL - 150mm
ULTRA 10t SJU SJUVF Blue SJUSP SJULC RFL175 FaceLifter - 5t WLL - 175mm
HEAVY 7t SJH SJHVF Orange SJHSP SJHLC RFL200 FaceLifter - 5t WLL - 200mm
STANDARD 5t SJS SJSVF Terracotta SJSSP SJHLC

PANEL SHIMS TILT UP PROPS SILCOSEAL SELECT

• 150 mm x 100 mm. Advances in tilt up Tilt-up contractors across Australia are
• Withstand over 7.5 tonnes. slab construction have turning to Silcoseal Select for greatly
• 1mm - 20mm in thickness brought new challenges reduced lifting suction, no residue
as panel sizes and loads affecting paint
have grown. adhesion, and
Available in a large range of unmatched
sizes. panel finish.
Once you
have tried
Code Description Nox-crete’s
SHIM01 1mm - Orange Colour water based
technology in
SHIM02 2mm - Aqua Colour a bondbreaker,
SHIM03 3mm - Green Colour you won’t go
SHIM05 5mm - Yellow Colour back.
SHIM10 10mm - Black Colour Code Description
SHIM15 15mm - Grey Colour SSSEL05 Silcoseal 20 Litre
SHIM20 20mm - White Colour SSSEL55 Silcoseal 200 Litre
