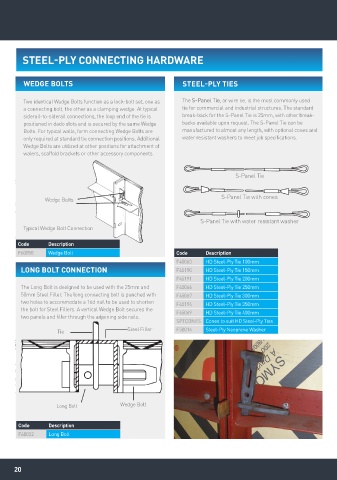

Page 20 - Concrete Handbook 2017

STEEL-PLY CONNECTING HARDWARE

WEDGE BOLTS STEEL-PLY TIES

Two identical Wedge Bolts function as a lock-bolt set, one as The S-Panel Tie, or wire tie, is the most commonly used
a connecting bolt, the other as a clamping wedge. At typical tie for commercial and industrial structures. The standard
siderail-to-siderail connections, the loop end of the tie is break-back for the S-Panel Tie is 25mm, with other break-
positioned in dado slots and is secured by the same Wedge backs available upon request. The S-Panel Tie can be
Bolts. For typical walls, form connecting Wedge Bolts are manufactured to almost any length, with optional cones and
only required at standard tie connection positions. Additional water resistant washers to meet job specifications.
Wedge Bolts are utilized at other positions for attachment of
walers, scaffold brackets or other accessory components.

S-Panel Tie

Wedge Bolts S-Panel Tie with cones

S-Panel Tie with water resistant washer
Typical Wedge Bolt Connection

Code Description
F60058 Wedge Bolt Code Description
F45063 HD Steel-Ply Tie 100mm
LONG BOLT CONNECTION F45190 HD Steel-Ply Tie 150mm
F45191 HD Steel-Ply Tie 200mm
The Long Bolt is designed to be used with the 25mm and F45066 HD Steel-Ply Tie 250mm
50mm Steel Filler. The long connecting bolt is punched with F45067 HD Steel-Ply Tie 300mm
two holes to accommodate a 16d nail to be used to shorten F45194 HD Steel-Ply Tie 350mm
the bolt for Steel Fillers. A vertical Wedge Bolt secures the F45069 HD Steel-Ply Tie 400mm
two panels and filler through the adjoining side rails.
SPTCONES Cones to suit HD Steel-Ply Ties

Tie Steel Filler F50014 Steel-Ply Neoprene Washer

Long Bolt Wedge Bolt

Code Description
F60052 Long Bolt
