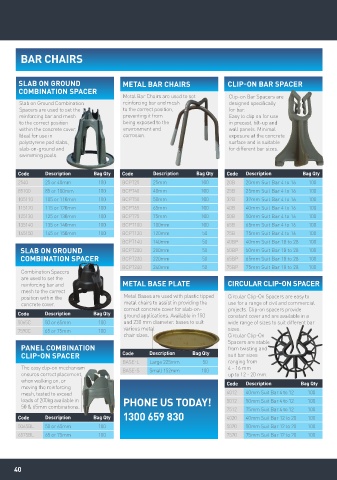

Page 40 - Concrete Handbook 2017

BAR CHAIRS

SLAB ON GROUND METAL BAR CHAIRS CLIP-ON BAR SPACER
COMBINATION SPACER
Metal Bar Chairs are used to set Clip-on Bar Spacers are
Slab on Ground Combination reinforcing bar and mesh designed specifically
Spacers are used to set the to the correct position, for bar.
reinforcing bar and mesh preventing it from Easy to clip on for use
to the correct position being exposed to the in precast, tilt-up and
within the concrete cover. environment and wall panels. Minimal
Ideal for use in corrosion. exposure at the concrete
polystyrene pod slabs, surface and is suitable
slab-on-ground and for different bar sizes.
swimming pools.

Code Description Bag Qty Code Description Bag Qty Code Description Bag Qty
2540 25 or 40mm 100 BCPT25 25mm 100 20B 20mm Suit Bar 4 to 16 100
85100 85 or 100mm 100 BCPT40 40mm 100 25B 25mm Suit Bar 4 to 16 100
105110 105 or 110mm 100 BCPT50 50mm 100 32B 32mm Suit Bar 4 to 16 100
115120 115 or 120mm 100 BCPT65 65mm 100 40B 40mm Suit Bar 4 to 16 100
125130 125 or 130mm 100 BCPT75 75mm 100 50B 50mm Suit Bar 4 to 16 100
135140 135 or 140mm 100 BCPT100 100mm 100 65B 65mm Suit Bar 4 to 16 100
145150 145 or 150mm 100 BCPT120 120mm 50 75B 75mm Suit Bar 4 to 16 100
BCPT140 140mm 50 40BP 40mm Suit Bar 18 to 28 100
SLAB ON GROUND BCPT200 200mm 50 50BP 50mm Suit Bar 18 to 28 100
COMBINATION SPACER BCPT220 220mm 50 65BP 65mm Suit Bar 18 to 28 100
BCPT240 240mm 50 75BP 75mm Suit Bar 18 to 28 100
Combination Spacers
are used to set the
reinforcing bar and METAL BASE PLATE CIRCULAR CLIP-ON SPACER
mesh to the correct
position within the Metal Bases are used with plastic tipped Circular Clip-On Spacers are easy to
concrete cover. metal chairs to assist in providing the use for a range of civil and commercial
correct concrete cover for slab-on- projects. Clip-on spacers provide
Code Description Bag Qty ground applications. Available in 150 constant cover and are available in a
5065C 50 or 65mm 100 and 230 mm diameter. bases to suit wide range of sizes to suit different bar
7590C 65 or 75mm 100 various metal sizes.
chair sizes. Circular Clip-On
Spacers are stable
PANEL COMBINATION from twisting and
CLIP-ON SPACER Code Description Bag Qty suit bar sizes
BASE-L Large 225mm 50 ranging from
The easy clip-on mechanism BASE-S Small 152mm 100 4 - 16 mm
ensures correct placement, up to 12 - 20 mm.
when walking on, or Code Description Bag Qty
moving the reinforcing
mesh, tested to exceed 4012 40mm Suit Bar 4 to 12 100
loads of 200kg available in PHONE US TODAY! 5012 50mm Suit Bar 4 to 12 100
50 & 65mm combinations. 7512 75mm Suit Bar 4 to 12 100
Code Description Bag Qty 1300 659 830 4020 40mm Suit Bar 12 to 20 100
5065BL 50 or 65mm 100 5020 50mm Suit Bar 12 to 20 100
6575BL 65 or 75mm 100 7520 75mm Suit Bar 12 to 20 100

40
40 1300 659 830 www.formdirect.com.au 41
