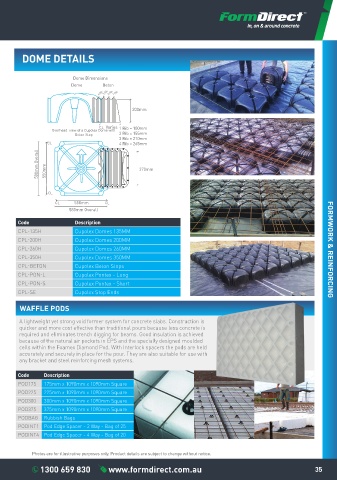

Page 35 - Concrete Handbook 2017

DOME DETAILS

Dome Dimensions
Dome Beton
4 Rib 3 Rib 2 Rib 1 Rib

200mm

CL Varies 1 Rib = 100mm
Overhead view of a Cupolex Dome with
Beton Stop 2 Rib = 155mm
3 Rib = 210mm
CL 4 Rib = 265mm
580mm Overall 550mm 370mm

CL

CL 550mm CL
580mm Overall

Code Description
CPL-135H Cupolex Domes 135MM
CPL-200H Cupolex Domes 200MM
CPL-260H Cupolex Domes 260MM FORMWORK & REINFORCING
CPL-350H Cupolex Domes 350MM
CPL-BETON Cupolex Beton Stops
CPL-PON-L Cupolex Pontex - Long
CPL-PON-S Cupolex Pontex - Short
CPL-SE Cupolex Stop Ends

WAFFLE PODS

A lightweight yet strong void former system for concrete slabs. Construction is
quicker and more cost effective than traditional pours because less concrete is
required and eliminates trench digging for beams. Good insulation is achieved
because of the natural air pockets in EPS and the specially designed moulded
cells within the Foamex Diamond Pod. With Interlock spacers the pods are held
accurately and securely in place for the pour. They are also suitable for use with
any bracket and steel reinforcing mesh systems.

Code Description
POD175 175mm x 1090mm x 1090mm Square
POD225 225mm x 1090mm x 1090mm Square
POD300 300mm x 1090mm x 1090mm Square
POD375 375mm x 1090mm x 1090mm Square
PODBAG Rubbish Bags
PODINT1 Pod Edge Spacer - 2 Way - Bag of 25
PODINT4 Pod Edge Spacer - 4 Way - Bag of 20

Photos are for illustrative purposes only. Product details are subject to change without notice.
