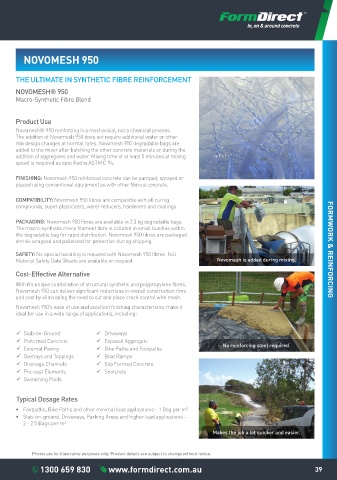

Page 39 - Concrete Handbook 2017
P. 39

NOVOMESH 950



             THE ULTIMATE IN SYNTHETIC FIBRE REINFORCEMENT

             NOVOMESH® 950
             Macro-Synthetic Fibre Blend



             Product Use
             Novomesh® 950 reinforcing is a mechanical, not a chemical process.
             The addition of Novomesh 950 does not require additional water or other
             mix design changes at normal rates. Novomesh 950 degradable bags are
             added to the mixer after batching the other concrete materials or during the
             addition of aggregates and water. Mixing time of at least 5 minutes at mixing
             speed is required as specified in ASTM C 94.


             FINISHING: Novomesh 950 reinforced concrete can be pumped, sprayed or
             placed using conventional equipment as with other fibrous concrete.


             COMPATIBILITY: Novomesh 950 fibres are compatible with all curing
             compounds, super plasticizers, water reducers, hardeners and coatings.

             PACKAGING: Novomesh 950 fibres are available in 2.3 kg degradable bags.
             The macro-synthetic mono filament fibre is collated in small bundles within
             the degradable bag for rapid distribution. Novomesh 950 fibres are packaged,
             shrink-wrapped and palletized for protection during shipping.
             SAFETY: No special handling is required with Novomesh 950 fibres. Full                                       FORMWORK & REINFORCING
             Material Safety Data Sheets are available on request.                 Novomesh is added during mixing.

             Cost-Effective Alternative
             With it’s unique combination of structural synthetic and polypropylene fibres,
             Novomesh 950 can deliver significant reductions in overall construction time
             and cost by eliminating the need to cut and place crack control wire mesh.
             Novomesh 950’s ease of use and excellent finishing characteristics make it
             ideal for use in a wide range of applications, including:


               Slab-on-Ground            Driveways
               Patterned Concrete         Exposed Aggregate
               External Paving            Bike Paths and Footpaths                 No reinforcing steel required.
               Overlays and Toppings      Boat Ramps
               Drainage Channels          Slip Formed Concrete
               Pre-cast Elements          Shotcrete
               Swimming Pools


             Typical Dosage Rates
             •  Footpaths, Bike Paths and other minimal load applications - 1 Bag per m3
             •  Slab-on-ground, Driveways, Parking Areas and higher load applications -
               2 - 2.5 Bags per m3
                                                                                  Makes the job a lot quicker and easier.


                  Photos are for illustrative purposes only. Product details are subject to change without notice.
