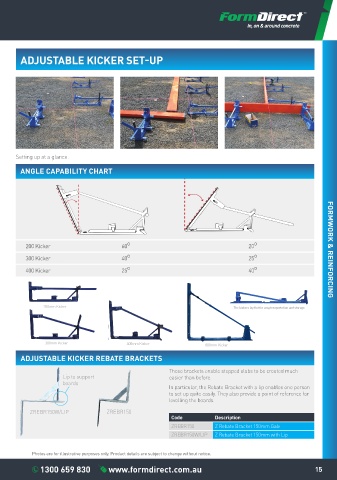

ADJUSTABLE KICKER SET-UP

Setting up at a glance.

ANGLE CAPABILITY CHART

200 Kicker 60 o 20 o FORMWORK & REINFORCING
300 Kicker 40 o 25 o

400 Kicker 25 o 40 o

FORMWORK & REINFORCING
200mm Kicker The kickers lay flat for easy tranportation and storage.

300mm Kicker 400mm Kicker 800mm Kicker
C PURLIN STEEL FORM
ADJUSTABLE KICKER REBATE BRACKETS

These brackets enable stepped slabs to be created much
Lip to support easier than before.
boards
In particular, the Rebate Bracket with a lip enables one person
to set up quite easily. They also provide a point of reference for
levelling the boards.

ZREBR150W/LIP ZREBR150
Code Description
ZREBR150 Z Rebate Bracket 150mm Galv
ZREBR150W/LIP Z Rebate Bracket 150mm with Lip

Photos are for illustrative purposes only. Product details are subject to change without notice.
