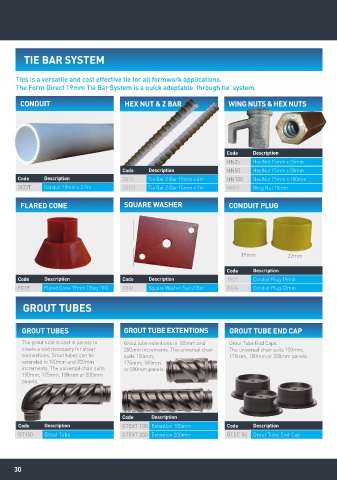

TIE BAR SYSTEM

This is a versatile and cost effective tie for all formwork applications.
The Form Direct 19mm Tie Bar System is a quick adaptable ‘through tie’ system.

CONDUIT HEX NUT & Z BAR WING NUTS & HEX NUTS

Code Description
HN25 Hex Nut 15mm x 25mm
Code Description HN50 Hex Nut 15mm x 50mm
Code Description ZB15 Tie Bar Z Bar 15mm x 6m HN100 Hex Nut 15mm x 100mm
3CDT Conduit 19mm x 2.9m ZB151 Tie Bar Z Bar 15mm x 1m WN15 Wing Nut 15mm

FLARED CONE SQUARE WASHER CONDUIT PLUG

19mm 22mm

Code Description
Code Description Code Description 19/21 Conduit Plug 19mm
FC19 Flared Cone 19mm ( Bag 100) ZBW Square Washer Suit Z Bar 22/24 Conduit Plug 22mm

GROUT TUBES

GROUT TUBES GROUT TUBE EXTENTIONS GROUT TUBE END CAP

The grout tube is cast in panels to Grout tube extentions in 100mm and Grout Tube End Caps.
create a void necessary for shear 200mm increments. The universal chair The universal chair suits 150mm,
connections. Grout tubes can be suits 150mm, 175mm, 180mm or 200mm panels.
extended in 100mm and 200mm 175mm, 180mm
increments. The universal chair suits or 200mm panels.
150mm, 175mm, 180mm or 200mm
panels.

Code Description
Code Description GTEXT 100 Extention 100mm Code Description
GT150 Grout Tube GTEXT 200 Extention 200mm GTEC 50 Grout Tube End Cap
