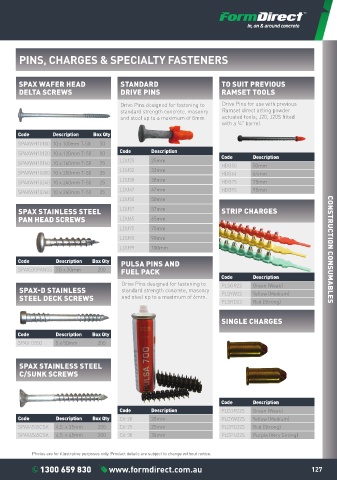

Page 127 - Concrete Handbook 2017

PINS, CHARGES & SPECIALTY FASTENERS

SPAX WAFER HEAD STANDARD TO SUIT PREVIOUS
DELTA SCREWS DRIVE PINS RAMSET TOOLS

Drive Pins designed for fastening to Drive Pins for use with previous
standard strength concrete, masonry Ramset direct acting powder
and steel up to a maximum of 8mm. actuated tools; J20, J20S fitted
with a ¼” barrel.
Code Description Box Qty
SPAXWH10100 10 x 100mm T-50 50
Code Description
SPAXWH10120 10 x 120mm T-50 50 Code Description
LDU25 25mm
SPAXWH10160 10 x 160mm T-50 25 HDB50 50mm
LDU32 32mm
SPAXWH10200 10 x 200mm T-50 25 HDB64 64mm
LDU38 38mm
SPAXWH10240 10 x 240mm T-50 25 HDB75 75mm
LDU42 42mm HDB95 95mm
SPAXWH10260 10 x 260mm T-50 25
LDU50 50mm

SPAX STAINLESS STEEL LDU57 57mm STRIP CHARGES
PAN HEAD SCREWS LDU65 65mm

LDU75 75mm
LDU90 90mm
LDU99 100mm CONSTRUCTION CONSUMABLES

Code Description Box Qty PULSA PINS AND
SPAX530PANSS 5G x 30mm 200 FUEL PACK
Code Description
Drive Pins designed for fastening to PLSGR22 Green (Weak)
SPAX-D STAINLESS standard strength concrete, masonry PLSYW22 Yellow (Medium)
STEEL DECK SCREWS and steel up to a maximum of 6mm. PLSRD22 Red (Strong)

SINGLE CHARGES

Code Description Box Qty
SPAX-D550 5 x 50mm 200

SPAX STAINLESS STEEL
C/SUNK SCREWS

Code Description
Code Description PLCGR22S Green (Weak)
Code Description Box Qty C6-20 20mm PLCYW22S Yellow (Medium)
SPAX4535CSK 4.5 x 35mm 200 C6-25 25mm PLCRD22S Red (Strong)
SPAX4545CSK 4.5 x 45mm 200 C6-30 30mm PLCPU22S Purple (Very Strong)

Photos are for illustrative purposes only. Product details are subject to change without notice.
