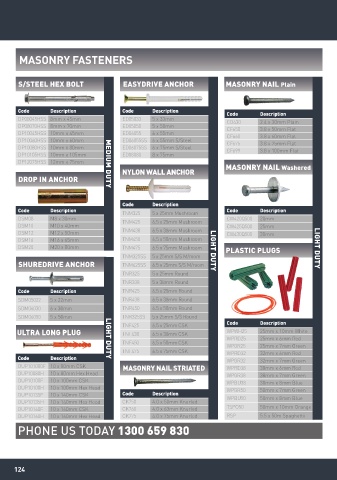

Page 124 - Concrete Handbook 2017

MASONRY FASTENERS

S/STEEL HEX BOLT EASYDRIVE ANCHOR MASONRY NAIL Plain

Code Description Code Description Code Description
DP08045HSS 8mm x 45mm ED05033 5 x 33mm CD430 2.4 x 30mm Plain
DP08070HSS 8mm x 70mm ED05050 5 x 50mm CF650 3.8 x 50mm Flat
DP10045HSS 10mm x 45mm ED06055 6 x 55mm CF660 3.8 x 60mm Flat
DP10060HSS 10mm x 60mm ED06055SS 6 x 55mm S/Steel CF675 3.8 x 75mm Flat
DP10080HSS 10mm x 80mm ED06075SS 6 x 75mm S/Steel CF699 3.8 x 100mm Flat
DP10105HSS 10mm x 105mm ED08080 8 x 75mm
DP12075HSS 12mm x 75mm MEDIUM DUTY
NYLON WALL ANCHOR MASONRY NAIL Washered
DROP IN ANCHOR

Code Description
Code Description TNM325 5 x 25mm Mushroom Code Description
DSM08 M8 x 30mm TNM425 6.5 x 25mm Mushroom CW420Q500 20mm
DSM10 M10 x 40mm CW425Q500 25mm
DSM12 M12 x 50mm TNM438 6.5 x 38mm Mushroom CW430Q500 30mm
DSM16 M16 x 65mm TNM450 6.5 x 50mm Mushroom
DSM20 M20 x 80mm TNM475 6.5 x 75mm Mushroom LIGHT DUTY PLASTIC PLUGS LIGHT DUTY
TNM325SS 5 x 25mm S/S M/room
SHUREDRIVE ANCHOR TNM425SS 6.5 x 25mm S/S M/room

TNR325 5 x 25mm Round
TNR338 5 x 38mm Round
Code Description TNR425 6.5 x 25mm Round
SDM05022 5 x 22mm TNR438 6.5 x 38mm Round
SDM06030 6 x 30mm TNR450 6.5 x 50mm Round
SDM06050 5 x 50mm TNR325SS 5 x 25mm S/S Round
TNF425 6.5 x 25mm CSK Code Description
ULTRA LONG PLUG TNF438 6.5 x 38mm CSK WPWH25 25mm x 10mm White
WPRD25 25mm x 6mm Red
TNF450 6.5 x 50mm CSK
WPGR25 25mm x 7mm Green
TNF475 6.5 x 75mm CSK WPRD32 32mm x 6mm Red
Code Description
WPGR32 32mm x 7mm Green
LIGHT DUTY
DUP101080F 10 x 80mm CSK MASONRY NAIL STRIATED WPRD38 38mm x 6mm Red
DUP10080H 10 x 80mm Hex Head WPGR38 38mm x 7mm Green
DUP10100F 10 x 100mm CSK WPBU38 38mm x 8mm Blue
DUP10100H 10 x 100mm Hex Head WPGR50 50mm x 7mm Green
DUP10135F 10 x 140mm CSK Code Description WPBU50 50mm x 8mm Blue
DUP10135H 10 x 140mm Hex Head CK750 4.0 x 50mm Knurled
DUP10160F 10 x 160mm CSK CK760 4.0 x 63mm Knurled TSPO50 50mm x 10mm Orange
DUP10160H 10 x 160mm Hex Head CK775 4.0 x 75mm Knurled RSP 5.5 x 50m Spaghettii
PHONE US TODAY 1300 659 830
