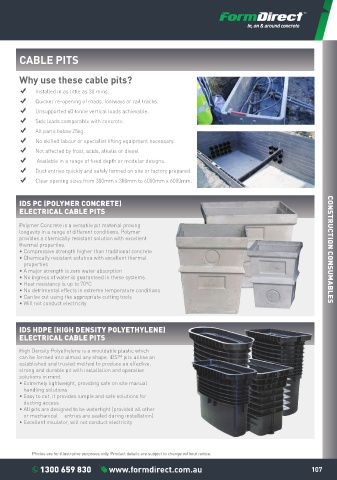

Page 107 - Concrete Handbook 2017

CABLE PITS

Why use these cable pits?

Installed in as little as 30 mins.
Quicker re-opening of roads, footways or rail tracks.
Unsupported 60 tonne vertical loads achievable.
Side loads comparable with concrete.

All parts below 25kg.
No skilled labour or specialist lifting equipment necessary.
Not affected by frost, acids, alkalis or diesel
Available in a range of fixed depth or modular designs.
Duct entries quickly and safely formed on site or factory prepared.
Clear opening sizes from 300mm x 300mm to 6000mm x 6000mm.

IDS PC (POLYMER CONCRETE)
ELECTRICAL CABLE PITS

Polymer Concrete is a versatile pit material proving
longevity in a range of different conditions. Polymer
provides a chemically resistant solution with excellent
thermal properties.
• Compressive strength higher than traditional concrete CONSTRUCTION CONSUMABLES
• Chemically resistant solution with excellent thermal
properties
• A major strength is zero water absorption
• No ingress of water is guaranteed in these systems.
• Heat resistancy is up to 70ºC
• No detrimental effects in extreme temperature conditions
• Can be cut using the appropriate cutting tools
• Will not conduct electricity

IDS HDPE (HIGH DENSITY POLYETHYLENE)
ELECTRICAL CABLE PITS

High Density Polyethylene is a mouldable plastic which
can be formed into almost any shape. iDS™ pits utilise an
established and trusted method to produce an effective,
strong and durable pit with installation and operative
solutions in mind.
• Extremely lightweight, providing safe on site manual
handling solutions
• Easy to cut, it provides simple and safe solutions for
ducting access
• All pits are designed to be watertight (provided all other
or mechanical entries are sealed during installation)
• Excellent insulator, will not conduct electricity

Photos are for illustrative purposes only. Product details are subject to change without notice.
