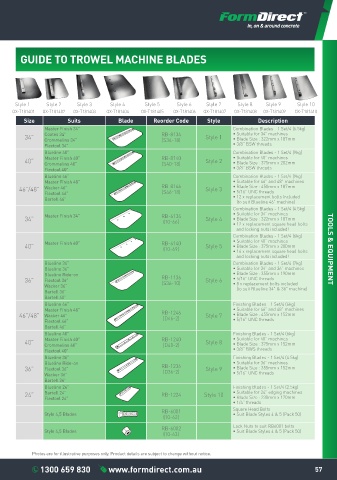

GUIDE TO TROWEL MACHINE BLADES

Style 1 Style 2 Style 3 Style 4 Style 5 Style 6 Style 7 Style 8 Style 9 Style 10
OX-T181401 OX-T181402 OX-T181403 OX-T181404 OX-T181405 OX-T181406 OX-T181407 OX-T181408 OX-T181409 OX-T181410
Size Suits Blade Reorder Code Style Description
Master Finish 34” Combination Blades - 1 Set/4 (6.5kg)
34” Coates 34” RB-8134 Style 1 • Suitable for 34” machines
• Blade Size : 322mm x 187mm
(S34-18)
Crommelins 34”
Flextool 34” • 3/8” BSW threads
Blueline 40” Combination Blades - 1 Set/4 (9kg)
40” Master Finish 40” RB-8140 Style 2 • Suitable for 40” machines
• Blade Size : 375mm x 202mm
(S40-18)
Crommelins 40”
Flextool 40” • 3/8” BSW threads
Blueline 46” Combination Blades - 1 Set/4 (9kg)
Master Finish 48” • Suitable for 46” and 48” machines
46”/48” Wacker 46” RB-8146 Style 3 • Blade Size : 450mm x 187mm
Flextool 46” (S46-18) • 5/16” UNC threads
Bartell 46” • 12 x replacement bolts included
(to suit Blueline 46” machine)
Combination Blades - 1 Set/4 (4.5kg)
34” Master Finish 34” RB-6134 Style 4 • Suitable for 34” machines
• Blade Size : 322mm x 187mm
(10-66)
• 12 x replacement square head bolts
and locking nuts included!
Combination Blades - 1 Set/4 (6kg)
40” Master Finish 40” RB-6140 Style 5 • Suitable for 40” machines TOOLS & EQUIPMENT
• Blade Size : 375mm x 200mm
(10-69)
• 16 x replacement square head bolts
and locking nuts included!
Blueline 34” Combination Blades - 1 Set/4 (7kg)
Blueline 36” • Suitable for 34” and 36” machines
Blueline Ride-on RB-1136 • Blade Size : 355mm x 190mm
36” Flextool 36” (S36-10) Style 6 • 5/16” UNC threads
Wacker 36” • 8 x replacement bolts included
(to suit Blueline 34” & 36” machine)
Bartell 36”
Bartell 40”
Blueline 46” Finishing Blades - 1 Set/4 (6kg)
Master Finish 48” • Suitable for 46” and 48” machines
46”/48” Wacker 46” RB-1246 Style 7 • Blade Size : 455mm x 152mm
(D46-2)
Flextool 46” • 5/16” UNC threads
Bartell 46”
Blueline 40” Finishing Blades - 1 Set/4 (6kg)
40” Master Finish 40” RB-1240 Style 8 • Suitable for 40” machines
• Blade Size : 375mm x 152mm
(D40-2)
Crommelins 40”
Flextool 40” • 3/8” BWS threads
Blueline 36” Finishing Blades - 1 Set/4 (4.5kg)
Blueline Ride-on RB-1236 • Suitable for 36” machines
36” Flextool 36” (D36-2) Style 9 • Blade Size : 355mm x 152mm
Wacker 36” • 5/16” UNC threads
Bartell 36”
Blueline 24” Finishing Blades - 1 Set/4 (2.5kg)
24” Bartell 24” RB-1224 Style 10 • Suitable for 24” edging machines
Flextool 24” • Blade Size : 230mm x 120mm
• 1/4” threads
RB-6001 Square Head Bolts
Style 4,5 Blades • Suit Blade Styles 4 & 5 (Pack 50)
(10-62)
RB-6002 Lock Nuts to suit RB6001 bolts
Style 4,5 Blades • Suit Blade Styles 4 & 5 (Pack 50)
(10-63)

Photos are for illustrative purposes only. Product details are subject to change without notice.
