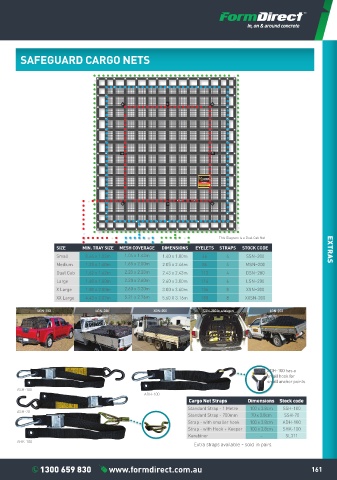

Page 161 - Concrete Handbook 2017

SAFEGUARD CARGO NETS

Warning Product

This Diagram is a Dual Cab Net
SIZE MIN. TRAY SIZE MESH COVERAGE DIMENSIONS EYELETS STRAPS STOCK CODE EXTRAS
Small 0.64 x 1.03m 1.04 x 1.43m 1.40 x 1.80m 46 4 SSN–200
Medium 1.25 x 1.60m 1.65 x 2.00m 2.05 x 2.46m 86 4 MSN–200
Dual Cab 1.62 x 1.62m 2.23 x 2.23m 2.43 x 2.43m 112 4 DSN–200
Large 1.40 x 1.80m 2.20 x 2.60m 2.60 x 3.00m 114 6 LSN–200
X Large 1.80 x 2.80m 2.60 x 3.20m 3.00 x 3.60m 136 8 XSN–200
XX Large 4.43 x 2.07m 5.21 x 2.76m 5.60 X 3.16m 180 8 XXSN-200

LGN-200 LGN-200 XGN-200 SGN-200 in a Wagon LGN-200

ADH-100 has a
small hook for
small anchor points.
ASH-100
ADH-100
Cargo Net Straps Dimensions Stock code
Standard Strap - 1 Metre 100 x 3.8cm SSH-100
ASH-70
Standard Strap - 700mm 70 x 3.8cm SSH-70
Strap - with smaller hook 100 x 3.8cm ADH-100
Strap - with Hook + Keeper 100 x 3.8cm SHK-100
Karabiner – SL311
AHK-100
Extra straps available - sold in pairs.
